Sub-Micron Machining Centres

Yasda Precision is a Japanese manufacturer of Machining Centres and Jig Borers, maintaining a reputation for accuracy, precision and quality, with design details like hand-scraped surfaces and exceptionally high standards for machine construction.

FEATURED Sub-Micron Machining Centre - YASDA MICRO CENTRE YMC-430

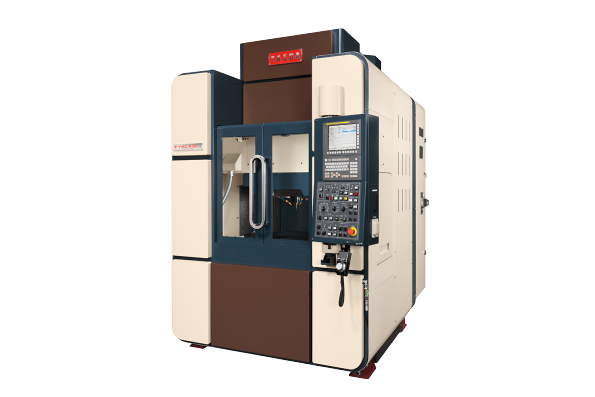

The Yasda Micro Centre YMC-430 is a state-of-the-art machine that answers the demand for ultra-high precision and high quality in the always advancing ‘high precision micro machining’ fields.

yasda-ymc430-micro-centre

Technical Specifications

Specification YMC-430
X-axis travel (Cross movement of table) 420mm
Y-axis travel (Cross movement of table) 300mm
Z-axis travel (Vertical movement of spindle head) 250mm
Table working surface 600mm x 350mm
Table loading capacity 100kg
Maximum revolving speed 40000min-1
Spindle taper hole HSK-E32
Tool storage capacity 32 tools
Control FANUC 31i-MODEL B5

For more information on the YMC-430 or any of our other Yasda Sub-Micron Machining Centres, please call us on 01372 844999.
